Manure handling

Manure handling systems for clean stalls

Clean surfaces and walkways at all times – our range of manure handling systems offers the perfect solution for a wide variety of animals and different barn types, also with optional time and cost-saving PLC control. You too can benefit from powerful technology with a long service life.

Combi scraper for beton and rubber floors

More information

Combi scraper systems developed for barns with closed alleys. BEEREPOOT combi scrapers take care of clean alleys, less emissions and best stable climate.  Robust and with latest technology the scraper wings adjust by cleaning the alleys with a slope.

By closed floors with rubber castors prevent a damage of the rubber coating. Because of the special PU-rubber rail is also on floors with rubber an optimal cleaning guaranteed.

Scraper widths from 200 up to 500 cm

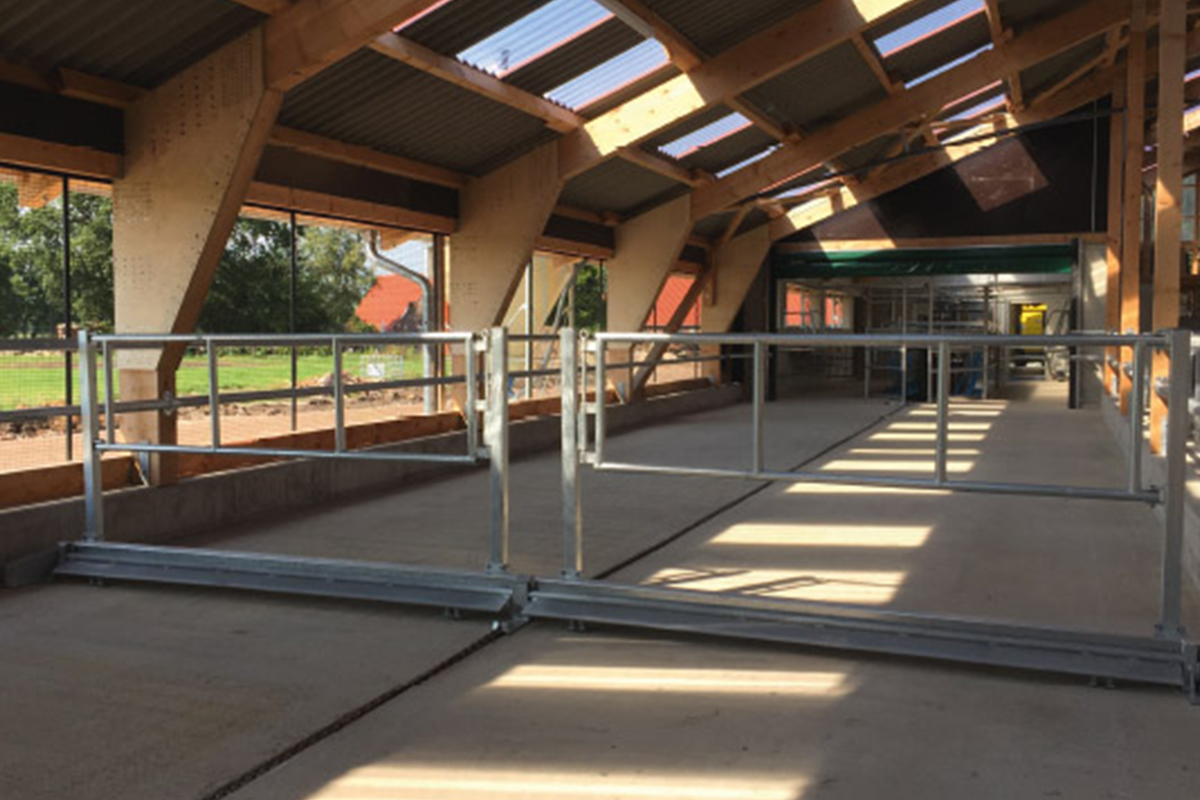

Combi scraper with cow grade

More information

Because of the perfect floor and width adjustment the Beerepoot combi scraper are available for most different situations. With a fixed cow grade or barrier it assist with a stress less driving of the cows between waiting area and milking parlour and in the same time it cleans the alley without disturbing the animals.

For alley widths from 200 up to 850 cm

Folding scraper (V-scraper)

More information

The folding scraper is perfectly suited for barns with straw litter. Scraper wings flexibly mounted to the center piece has the advantage of compensating differences in the alley width and allows a cleaned floor.

By folding the scraper in the return, it takes no bedding material backwards. In addition, the animals are hardly restricted, so that the cleaning causes no unrest.

Scraper widths from 250 up to 480 cm

Folding scraper for
bedded stalls

More information

Constructed for clean bull-mast stables and automatic operation. The litter mixed with faeces and urine serves a comfortable bed surface. By a slight slope of the surface, the animals tread down this solid manure and push it in the alley where the folding scraper drops it in the discharge channel.

Specially mounted scraper wings adapt to the alley slope.

Optional:

  • Synchronisation with cross channel; for reducing of emissions and animal-friendly husbandry

Scraper widths from 250 up to 480 cm

Discharge Flaps

More information

For cleaning closed alleys, the manure is pushed to a discharge channel, which is secured by the discharge flaps. These open through a mechanical device on the combi scraper, so that manure, silage or straw rests are dropped – a simple and clean solution. By moving the scraper backwards, the discharge flap closes automatically. This ensures high safety for the animals and comfortable driving on with up to 3t axle load.

Flap widths from 250 up to 450 cm

Over-path bridge for discharge shaft

More information

At long alleys the discharge channel can be placed in the middle or at the end. For this is the over-path bridge for discharge shafts developed which can also be used with hinged partition barriers.  Best walkability of the floor and safe operations are taken into account. Synchronized with the scraper lifts the platform for manure removal up and sets after cleaning back in position. A clean solution.

For alley widths from 200 up to 500cm

Low emission
Floors

More information

Magellan ® Groove

For the improvement of hoof health


  • Non-slip surface with drainage grooves
  • Tear-proof fabric insert
  • UV treated new rubber in rolls
  • Length & width made to measure
  • Suitable for all swing flap gate valves
  • Including fastening material & finger bar

Some advantages

  • Cows’hooves are not surrounded by liquids making hooves harder and healthier.
  • Movement on flexible rubber protects joints.
  • Bacteriological problems such as digital dermatitis also called (Mortellaro’s disease) are now better controlled.

Supplies

things you may need

Electronic control system

More information

An easy-to-use SPS technique controls the operation – either automatically or manually. All the required parameters e.g. running time or alley length can be programmed. This will include anti-freeze protection, discharge flaps and herding fence function. A traction monitoring controls the wear of drive wheels, steel chain and corner wheels.

Drive unit

More information

Robustly constructed and made of high-quality materials, BEEREPOOT drive stations impress with their maintenance-friendly and sustainable efficiency. Equipped with a powerful 0.75 kW motor, 13 mm manganese steel chain and integrated tightening system, even large alley lengths can be mastered without difficulty.

Scraping speed: 4m/min.

Automatic chain tightener

More information

Optionally, the drive units of our manure handling systems can be equipped with an automatic chain tightener, which regulate constantly the chain tension for an optimized scraper run. 500mm Hub / ca. 500kg.  In daily use, the highest functionality and operational safety are guaranteed.
